GPD WIN Mini (2025) - Shenzhen GPD Technology Co., Ltd.

7-inch Handheld Console, Truly Compact, Truly Portable, Truly Powerful

120Hz High-refresh Gaming Display | Supports VRR | AMD Ryzen Processor | Integrated Quick-release Grip

35W TDP | New Cooling Module + Fan | 2280 SSD | Independent Amplifier IC | New Touchpad, No Drift

GPD WIN Mini (2025)

Truly Compact, Truly Portable, Truly Powerful

GPD WIN Mini（2025）

109mm

172mm

ROG ALLY X

111mm

280mm

Net weight: 678g

Net weight: 555g

CPU

AI 9 HX 370 | AI 9 365

Z1 Extreme

WIN Mini's APU is stronger

AMD Ryzen™ 7 8840U

Multi-Core Score *

14874 | 13660

WIN Mini is 17-80% stronger

iGPU Score *

40518 | 37446

WIN Mini is 36-95% stronger

TDP

28~35W

15~30W

WIN Mini performs better

Weight (g)

WIN Mini is lighter

Tech Specs

GPD WIN Mini (2025)

ROG ALLY X

Single-Core Score *

2948 | 2562

WIN Mini is 46~77% stronger

iGPU

890M | 880M

780M

WIN Mini has the latest iGPU

RAM

16GB | 32GB | 64GB LPDDR5x 7500 MT/s

24GB LPDDR5x

WIN Mini is 50-167% larger

Volume (cm³)

WIN Mini is smaller

eGFX

Support GPD G1 or third-party graphics dock via USB4

WIN Mini has better gaming

780M

SSD

1TB | 2TB M.2 NVMe 2280

1TB

WIN Mini is 100% larger

Keyboard

Support

Not support

WIN Mini has easier input

Not support

*The single-core and multi-core scores are from Geekbench 6, which supports the AVX-512 instruction set. The WIN Mini 2025 has AVX-512 enabled by default. Therefore, the scores reflect the performance ceiling of the WIN Mini 2025.
*The integrated graphics score is from Geekbench 6's Vulkan benchmark.
*The graphics dock refers to an external graphics expansion dock. The WIN Mini supports both desktop graphics docks with replaceable graphics cards and the GPD G1 mobile graphics dock.

AMD Ryzen™ AI 9 HX 370 / 365

AMD Radeon 890M / 880M
16 CU，1024 SU
64GB LPDDR5x 7500 MT/s

AMD Ryzen 7 8840U

AMD Radeon 780M
12 CU，768 SU
16GB LPDDR5x 7500 MT/s

Hall Dual 3D Joystick

Bilinear motors with Z-axis vibration support
L2 / R2 Linear Analog Trigger Buttons

6-Axis Gyroscope Positioning

USB4 Port

Supports GPD G1 And Third-Party eGPUs

40Gbps Speed

Supports 65W PD 3.0 Fast Charging

Premium DTS: X audio

AAC Ultra-linear Dual Speakers

Backlit Keyboard

2 Programmable Keys
2-Level Adjustable Backlight
QWERTY Full Keyboard

New Cooling Module + Fan

Thickened Heat Pipe Cooling
50% Increased Thermal Conductivity
35% Improved Heat Dissipation

Integrated Grip

Plug-and-play, quick-release design

No third-party tools required

7" LTPS Native Landscape

Supports VRR (Variable Refresh Rate) and AMD FreeSync™ Premium
120Hz, AF+AR Coating, 500nit

microSD Card Slot

UHS-I Interface, A2 Rating
Read Speed: 160MB/s
Write Speed: 120MB/s

1TB / 2TB M.2 2280 SSD

Sequential R/W Speeds >5000MB/s

PCIe 4.0 Technology

44.24Wh Battery

3.87V Ultra-High Density

~50% Longer Battery Life

Ports and Function Keys Description

Full-speed USB4 with 40Gbps effective bandwidth, supports GPD G1 graphics dock and PD fast charging; fully functional USB Type-C with 10Gbps speed; A2 level microSD card reader with 160MB/s read and write speeds.

Programmable Macro Keys

Speaker

BIOS Flash Hole

Type-C (USB4)

Charging Indicator Light

Full Function USB Type-C

Exhaust Vent

Gamepad / Mouse Toggle Key

Combo Audio Jack

microSD Card Slot

USB A

Programmable Macro Keys

Speaker

Running Indicator

7-inch, 120Hz High-Refresh-Rate Gaming Screen

Native Landscape, Supports VRR

A 7-inch, 120Hz high-refresh-rate gaming screen specially designed for WIN Mini. It features native landscape , sixth-generation Corning Gorilla Glass, LTPS technology, supports VRR (Variable Refresh Rate), and AMD FreeSync Premium. No more worries about screen tearing in games and no need for frame locking, allowing for full performance release!

LTPS Technology

Display Screen

500nit

Brightness

60Hz / 120Hz

Variable Refresh Rate

314 PPI

Retina Display

Victus®

Corning® Gorilla®

DC Dimming

Flicker-Free

10-Point Touch

More Responsive

100% sRGB

High Color Gamut

The Built-in Hall Effect Mini Joysticks Almost Completely Eliminate The Chance Of Dead Zones Occurring At The Center Point

The built-in Hall Effect mini joysticks adopt a sunken design with down-press support for L3 and R3, and are infinitely adjustable and super-linear. After calibration, the Hall Effect joysticks have improved return accuracy and voltage division precision by 37.5% and 25% respectively compared to standard joysticks, almost completely eliminating the chance of dead zones occurring at the center point. They can accurately perceive the player's finger movements, improving game control precision and sensitivity.

The Keyboard Has Been Changed To A Backlit Design, And Function Keys Can Be Used To Turn The Backlight On Or Off

The WIN Mini 2025 keyboard has added white backlighting, maintaining the same style, but with larger keys that are more suitable for typing with both thumbs. The keyboard still uses a scissor-switch design, and the backlight can be turned on or off using a function keys.

The Full-Featured Type-C Port Is Retained, Supporting PD Protocol Fast Charging

When the USB4 port is used, the WIN Mini can still charge and transfer audio, video, and data through this full-featured Type-C port with a bandwidth of 10Gbps (USB 3.2 Gen 2) and support for an external 8K@60Hz display.

The L2 / R2 Triggers Are Linear Analog Trigger Buttons, Allowing For Smooth Acceleration In Racing Games And Quick Shooting In First-person Shooters

Compared to the WIN 2, the L2 / R2 triggers of the WIN Mini 2025 have been changed to linear analog trigger buttons, accurately simulating the button response under different intensities and allowing for precise shooting, acceleration, and other operations. This provides a more realistic experience of the dynamic changes in games, comfortable use of the controller, and increased immersion and playability in games.

The Controller Supports USB4 And GPD G1 Graphics Card Expansion Dock In Order To Enhance The Gaming Experience

The controller adds a new USB4 interface, with a bandwidth of 40Gbps and native support for Thunderbolt 3 protocol, allowing connection to GPD G1 or third-party graphics card docks to play AAA titles. It supports an external 8K@60Hz display and PD fast charging protocol.

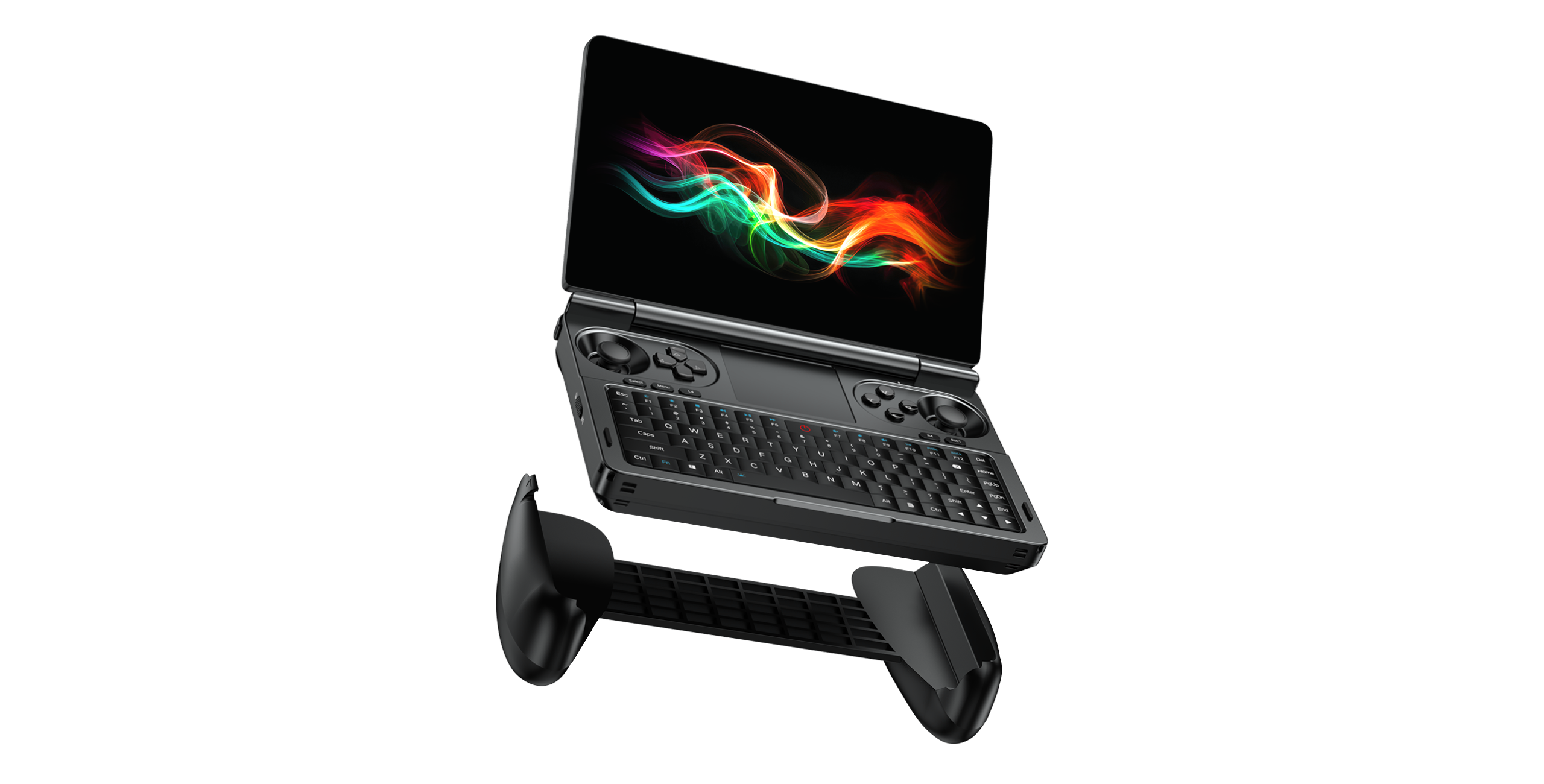

Integrated Grip With

Quick-release Design (Optional)

To enhance convenience and ease of use, we designed an integrated grip accessory that can be quickly assembled and disassembled without the need for third-party tools. The user-friendly design allows the handle to naturally fit in your hand, enabling players to focus more on the game itself and improving gameplay controllability!

Adding Programmable Macro Keys L4 And R4, Allowing a One-Button Keys Combination

The C-side of the controller adds programmable macro keys L4 and R4, and with the WinControls tool, users can easily set up combination keys and trigger them with one button, making it easy to play PC online games.

The Controller Has Built-In Dual Linear Rumble Motors Supporting Linear Vibration Along The Z-Axis

The WIN series handheld console adopts dual linear rumble motors for the first time, which, compared to rotary rumble motors, reduces the start-up and stop time, improves linearity, and supports linear vibration along the Z-axis. The linear rumble motors provide precise vibration feedback, simulating the corresponding vibration sensation, allowing gamers to feel the dynamic changes in the game more deeply, while maintaining low power consumption and noise levels.

The Controller Is Designed With 3-Axis Gravity Sensing And 3-Axis Gyroscope, Allowing For Motion Control Gaming On PC

Adding 3-axis gravity sensing and 3-axis gyroscope design makes the controller more flexible in operation. Players can tilt the controller to control characters or objects in the game, making the game operation more natural and intuitive, and bringing a new gaming experience.

The Device Features A 44.24Wh Ultra-High-Density Battery, Providing A 50% Increase In Battery Life

The WIN Mini adopts a 3.87V ultra-high-density polymer lithium battery, which increases the battery capacity to 44.24Wh within a limited space. Compared to the WIN 2, this provides a nearly 50% increase in battery life.

Tech Specs

Screen: 7-inch, Native Landscape Orientation, 1080P, supports VRR
CPU: AMD Ryzen™ AI 9 HX 370 / AI 9 365 / R7 8840U
GPU: AMD Radeon 890M / 880M / 780M
DDR: 16GB / 32GB / 64GB，LPDDR5x 7500 MT/s
Storage: 1TB / 2TB M.2 NVMe SSD（PCIe 4.0）
Wireless Network: Wi-Fi 6E
Bluetooth: 5.3
USB4: × 1, 40Gbps
USB Type-C: × 1, 3.2 Gen2
USB A: × 1, 3.2 Gen2
microSD Slot: × 1, UHS-Ⅰ A2, U3, V30
Joystick: Hall Effect Mini Joystick
Trigger Button: Linear Trigger Button
Motor: Dual Linear Motor
Customizable Buttons: L4, R4
Shell Color: Black
Battery: 44.24Wh

More >>

Top-Of-The-Line DTS:X Sound Effects Deliver A Panoramic Surround Sound Experience In The Palm Of Your Hand

The WIN Mini is equipped with two top-of-the-line stereo speakers from German brand AAC, supporting DTS:X sound effects. It features a new algorithm based on psychoacoustics and HRTF technology to process audio output from headphones and speaker devices according to the game environment. The DTS:X sound effects can be fine-tuned through a 10-band graphic equalizer, allowing users to enjoy different EQ settings and simulate physical 7.1 channel surround sound. You can even fine-tune the audio spectrum optimization through a hearing test, and experience immersive audio from all directions, including up, down, left, right, front, and back, through headphones and built-in speakers, for a high-quality immersive audio experience.

The Controller Features A Precise Touchpad (PTP Mode) That Supports Up To Four-Finger Gestures

Compared to the WIN 2, the WIN Mini features a precise touchpad (in PTP mode), which can detect the position and movement trajectory of fingers through multi-touch, providing more accurate control. It can quickly and flexibly identify finger movement trajectories and respond to user operations in a timely manner.

The microSD Card Reader Has A Theoretical Speed Of 160MB/s For Reading And 120MB/s For Writing

The WIN Mini retains the microSD card reader with a UHS-I bus interface, SD 3.0 protocol, supporting speed classes A2, U3, V30, with a read/write speed of 160MB/s, and compatible with three storage card standards: microSD, microSDHC, and microSDXC.

Anti-reflective Coating

Effectively Reduces Glare And Increases transmittance

The Anti-reflective coating (AR) has high hardness, effectively reduces glare, prevents glare and scratches, increases transmittance, and enhances screen brightness up to 500nit. It blocks blue light and effectively protects the eyes. The Anti-Fog Coating (AF) provides excellent resistance to dirt, water repellency, and durability, reducing fingerprint and various stain adhesion.

Coating-free mirror surface

AR + AF Coating

Mirror reflection < 0.5%, transmittance 99.5%

Professional Peripherals

Provides An Ultimate Experience

Protective case, grip, external GPU dock, all equipped with 65W PD fast charging, abundant external interfaces. Expanding the display turns it into a professional workstation.

RDNA 3.5 iGPU, Doubling Gaming Performance
Enjoy 1080P / 120 FPS on AAA Titles

RDNA 3.5 architecture iGPU AMD Radeon 890M offers approximately 50% performance improvement per watt. Compared to FSR 3.0, FSR 3.5 provides nearly double the gaming performance, particularly excelling in AAA titles with low settings at 1080P, achieving 120 FPS.

Test benchmark: AMD Ryzen™ AI 9 HX 370 / 64GB LPDDR5x-7500 MT/s / 2TB M.2 NVMe SSD / 1920×1200 / Windows 11 Home 64bit. Unless specified otherwise, FSR is disabled by default during testing!

Game Name
Horizon Forbidden West
Dragon's Dogma 2
Persona 3 Reload
Enshrouded
Assassin's Creed Mirage
Diablo IV
Elden Ring
God of War
F1 2021
Far Cry 6
FIFA 22
Forza Horizon 5
Halo Infinite
Assassin's Creed Valhalla
Cyberpunk 2077
Genshin Impact
Horizon Zero Dawn
Microsoft Flight Simulator 2020
Valorant
Watch Dogs: Legion
Apex Legends
Borderlands 3
Call of Duty: Modern Warfare
Control
Days Gone
F1 2019
Metro Exodus
Red Dead Redemption 2
Tom Clancy's Ghost Recon Breakpoint
The Division 2
Far Cry: New Dawn
Assassin's Creed Odyssey
Far Cry 5
Fortnite
Forza Horizon 4
Monster Hunter：World
Shadow of the Tomb Raider
PUBG
Battlefield V
Dead by Daylight
No Mans Sky
Overwatch
World of Tanks
DotA 2
Grand Theft Auto V
Rainbow Six Siege
Tom Clancy's Rainbow Six: Siege
The Witcher 3: Wild Hunt - Blood and Wine
Middle-earth：Shadow of Mordor
Battlefield 4
CS:GO
League of Legends

Low / FPS（AVG）
73
51
120
81
87
139
85
83
159
78
188
124
98
68
87
60
84
75
211
92
143
128
173
128
102
204
128
87
118
178
108
105
110
388
174
158
121
141
157
121
147
289
205
208
165
189
258
148
165
200
462
234

Issue Date
2024
2024
2024
2024
2023
2023
2022
2022
2021
2021
2021
2021
2021
2020
2020
2020
2020
2020
2020
2020
2019
2019
2019
2019
2019
2019
2019
2019
2019
2019
2019
2018
2018
2018
2018
2018
2018
2017
2016
2016
2016
2016
2016
2015
2015
2015
2015
2015
2014
2013
2012
2011

Medium / FPS（AVG）
51
42
120
65
80
99
74
65
121
64
174
101
93
58
62
60
73
59
196
84
142
105
142
85
99
188
89
74
103
124
99
88
101
269
144
108
101
137
125
114
113
287
150
203
112
155
223
136
124
197
392
226

High / FPS（AVG）
41
38
120
52
65
84
70
62
95
57
158
98
89
52
51
60
59
53
181
64
132
75
129
64
92
163
68
62
98
98
94
76
93
179
134
95
98
121
103
110
76
278
124
196
78
152
201
117
109
194
348
216

Ultra / FPS（AVG）
36
29
120
45
60
70
63
48
73
45
162
82
55
NULL
45
68
52
42
173
40
128
62
113
NULL
90
124
58
51
72
73
82
62
90
128
76
79
86
95
97
108
52
224
86
189
50
137
195
88
94
146
NULL
209

AMD Ryzen™ AI 9 HX 370

Breaking Limits, Offering Exceptional Performance

Utilizing advanced 4nm manufacturing process, ZEN 5 + RDNA 3.5 + XDNA 2 architecture, experience cutting-edge artificial intelligence (AI) technology, accelerate multitasking, boost productivity, foster collaboration, and enhance efficiency.

AMD Ryzen™ AI 9 HX 370

12 Cores

24 Threads

5.1 GHz

Max. Boost Clock

36.75 MB

Full Cache

80 TOPS

TPP

AMD Radeon™ 890M

16 CU

1024 SU

2.9 GHz

Boost Clock

11.88 TFLOPS

FP32 (half)

23.76 TFLOPS

FP16 (half)

Strix Point

Zen 5 Architecture

TSMC 4nm

Manufacturing Process

35W

Configurable TDP

CPU-Z Single-Core and Multi-Core Benchmark:

Single-Core

Multi-Core

788.6

509

7104.8

8899

AMD Ryzen™ AI 9 HX 370 (35W)

Intel® Core™ i9-7980XE Extreme Edition (165W)

AMD Ryzen™ AI 9 HX 370 (35W)

Intel® Core™ i9-7980XE Extreme Edition (165W)

80 TOPS

38 TOPS

36 TOPS

AMD Ryzen™ AI 9 HX 370

AMD Ryzen™ 7 8845HS

Intel® Core™ Ultra 9 processor 185H

Overall APU Computing Power Comparison:

The AVX-512 Instruction set Outperforms the 125W Intel® Core™ i9-11900K Processor

The AVX-512 instruction set is designed for accelerating AI and HPC applications, as well as CPU-dependent simulation games, achieving a 1.3x improvement in FP32 floating-point inference multithreaded performance and a 2.5x improvement in INT8 integer inference multithreaded performance.

God of War III on PS3 can be Played at 60 Frames Per Second, Enabling Full-speed PS3 Emulation

To run emulators smoothly, a higher-performance CPU is needed. With the support of the AVX-512 instruction set, combined with the new RDNA 3.5 architecture iGPU, emulators such as RPCS3, Yuzu, Gitra, Vita3K, and Xenia can achieve up to a 50% performance boost.

60 FPS

45 FPS

60 FPS

45 FPS

PS3 Ratchet & Clank Future:A Crack in Time

PS3 Calling All Cars

PS3 Ninja Gaiden Sigma 2

PS3 God of War 3

PS3 Demon's Souls

PS3 Red Dead Redemption

PS3 Uncharted

PS3 Metal Gear Solid 4: Guns of the Patriots

PS3 Warriors Orochi Z

7104.8

815

6843

669.3

5820.3

679.3

AMD Ryzen™ AI 9 HX 370

Intel® Core™ i9-11900K

AMD Ryzen™ 7 8840U

Benchmark Version 17.0.1.64

8588.9

1097

8534

998.5

7609.4

880.3

Version 19.01.64 AVX-512 (beta) Benchmark

CPU-Z Benchmark Testing

Multi-core

Single-core

Time Spy Score Comparison, 890M iGPU

Outperforms NVIDIA GeForce RTX 2050 (Mobile)

AMD Radeon 890M iGPU, based on the all-new RDNA 3.5 architecture, integrates 16 CUs with 1024 sp, delivering a 33% improvement in specifications compared to the previous generation, resulting in a 36% increase in gaming performance! Combined with LPDDR5x 7500 MT/s memory, the graphics memory bandwidth has also been enhanced.

3815

3769

3218

3118

2945

2791

GPD WIN Mini 2025（890M）35W

NVIDIA GeForce RTX 2050 (Mobile) 45W

GPD WIN Max 2 (780M) 单翼 Review, 72W

GeForce GTX 1650 Ti Max-Q (Mobile) 50W

GeForce GTX 1650 Max-Q (Mobile) 45W

7940HS & Radeon 780M (iGPU) 54W

3DMark - Time Spy Graphics Score Somparison:

Brand-new XDNA 2 Architecture NPU, 50 TOPS Strongest AI Accelerator

The brand-new AMD XDNA 2 architecture NPU is 3 times more powerful than the previous generation NPU, reaching 50 TOPS. Combined with the CPU and GPU, the total computing power is as high as 80 TOPS, far exceeding the 40 TOPS computing power standard of AI PCs. It improves computing efficiency and reduces overall power consumption, making local AI computing tasks such as AI matting faster and more efficient.

AMD Ryzen™ AI 9 HX 370

Qualcomm Snapdragon X Elite

NPU Computing Power Comparison:

50 TOPS

45 TOPS

38 TOPS

Apple M4（10-CPU）

With 64GB of LPDDR5x 7500MT/s Memory, There is no Need to Worry About Memory Overflow During Gaming

Supports LPDDR5x memory at 7500MT/s, with optional capacities of 16GB, 32GB, or 64GB. Up to 16GB of this memory can be allocated for video memory, allowing AI applications that require large memory to perform optimally. During gaming, there’s no need to worry about memory overflow, resulting in smoother gameplay.

New Cooling Module + Fan
Up to 35W TDP, Efficient Cooling

Using high thermal conductivity materials and advanced design concepts, a new fan has been implemented to effectively and quickly dissipate heat. The TDP has been increased to 35W, with optimized heat sinks and more refined fan designs to ensure smooth airflow and lower temperatures. This not only results in quieter operation but also maintains device stability under heavy loads, enhancing overall performance and user experience.

PCIe Gen4 M.2 2280 SSD, with large capacities ranging from 1TB to 2TB, and read/write speeds exceeding 5000MB/s, allowing for unlimited expansion.

Supports PCIe Gen4 specification, with a theoretical maximum throughput of up to 7.877GB/s. Equipped with standard capacities of 1TB to 2TB SSD, with actual sequential read and write speeds exceeding 5000MB/s.
