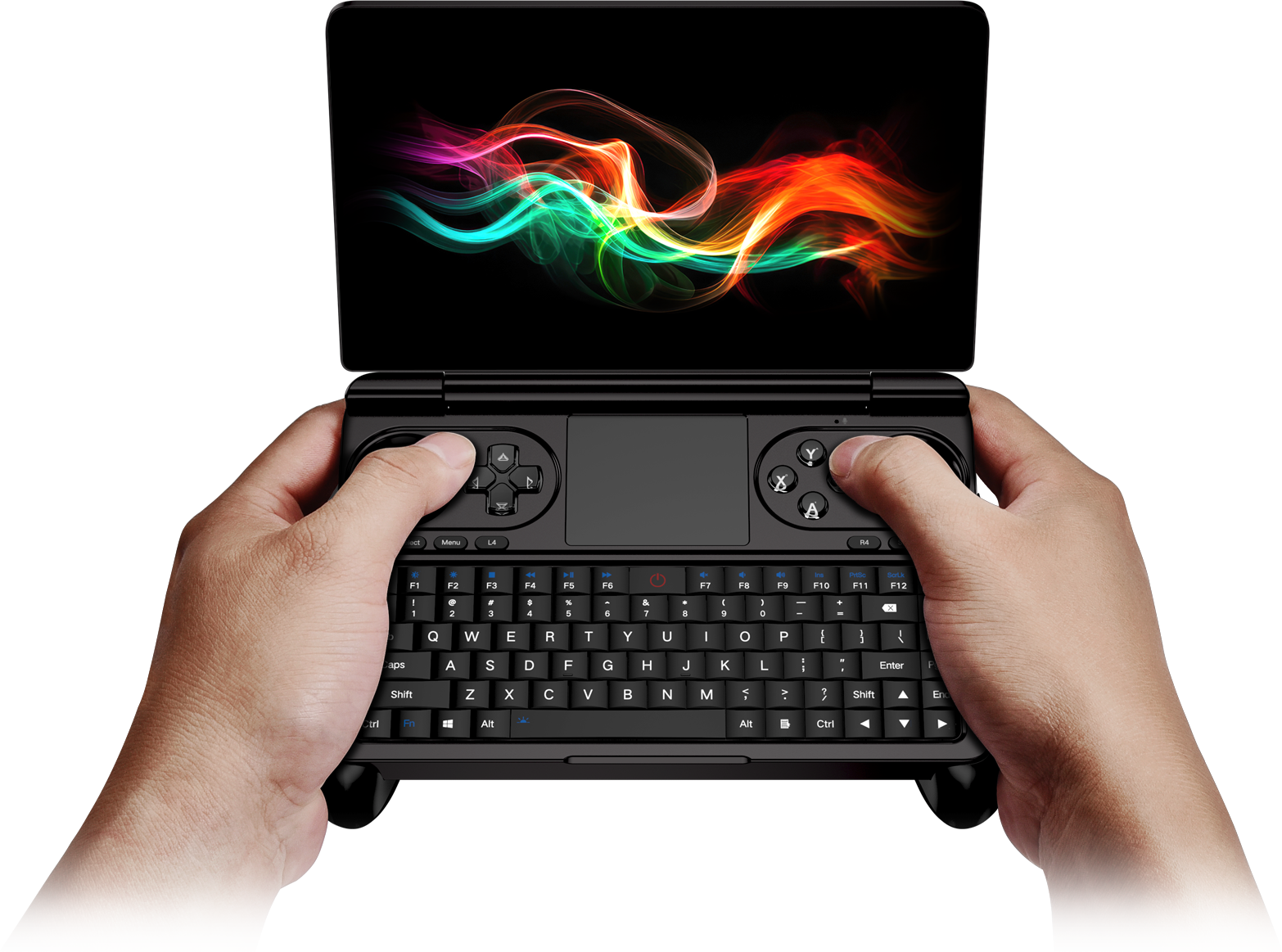

GPD WIN Mini (2024)

Basic Information

Product Name
Launch Data
Product Positioning
Operating System

GPD WIN Mini（8840U）
04 / 2024
Handheld Game Console
Pre-Installed With Windows 11 Home 64-bit, With Optional Steam OS or GPD OS

GPD WIN Mini（8640U）
04 / 2024
Handheld Game Console
Pre-Installed With Windows 11 Home 64-bit, With Optional Steam OS or GPD OS

Tech Specs

Display

Characteristic

Touch Panel
Screen Type
Screen Size
Refresh Rate
Aspect Ratio
Screen Resolution
Pixels Per Inch

120Hz Gaming Screen, Native Landscape, Supports VRR, AMD FreeSync™ Premium, Flip Design, Infinite Hinge, Maximum Opening Angle Of 168 Degrees
Support, 10-point Touch Control
The Sixth Generation Of Corning Gorilla Glass, LTPS Technology, AF+AR Coating
7 Inches
60Hz / 120Hz
16:9
1920×1080
314 PPI

CPU

Product model
# of CPU Cores / # of Threads
Base Clock
Max. Boost Clock
AI Performance
Total Processor Performance
Total Cache
Architecture
Process Size

AMD Ryzen 7 8840U
8C / 16T
3.3 GHz
5.1 GHz
16 TOPS
38 TOPS
24.5 MB
Zen 4（Hawk Point）
4nm

AMD Ryzen 5 8640U
6C / 12T
3.50 GHz
4.90 GHz
16 TOPS
31 TOPS
22.38 MB
Zen 4（Hawk Point）
4nm

GPU

Processor Graphics
Graphics Frequency
Compute Units
Shading Units
Floating-point Performance


Pixel Rate
Texture Rate
Video Memory
HDMI
DP
DirectX
OpenGL

AMD Radeon 780M
2700 MHz
12CU
768
17.82 TFlops（FP16）
8.92 TFlops（FP32）
556.8 GFlops（FP64）
92.80 GPixel/s
139.2 GTexel/s
Shared Memory
7680 x 4320 @60Hz
7680 x 4320 @60Hz
DX12 Ultimate
4.6

AMD Radeon 760M
2600 MHz
8CU
512
11.53 TFlops（FP16）
5.84 TFlops（FP32）
368.4 GFlops（FP64）
60.83 GPixel/s
95.84 GTexel/s
Shared Memory
7680 x 4320 @60Hz
7680 x 4320 @60Hz
DX12 Ultimate
4.6

Storage

Memory
Memory Types
Memory Dual Channel
Hard Disk Type
Hard Disk Interface
Supported Specifications
Standard Capacity
Bus Specification
Transfer Protocol

32GB / 64GB
LPDDR5 6400 MT/s
Quad 32-bit Channels
M.2 SSD
M.2（Socket 3）× 1
M.2 NVMe 2230 × 1
512GB / 2TB
PCIe 4.0 × 4
NVMe 1.3 / 1.4

16GB
LPDDR5 6400 MT/s
Quad 32-bit Channels
M.2 SSD
M.2（Socket 3）× 1
M.2 NVMe 2230 × 1
512GB
PCIe 4.0 × 4
NVMe 1.3 / 1.4

Multimedia Support

Audio System
Loudspeakers

Microphone

Built-In Audio Chipset
Equipped With 2 Built-In Hyper-Linear Speakers, Both Headphones And Speakers Support DTS: X Ultra Sound Effects, Which Can Simulate The Sound Effects Of A Physical 7.1 Channel
Built-In Microphone

Network Communications

Wi-Fi 6
MU-MIMO
Bluetooth

IEEE 802.11 a/b/g/n/ac/ax, Support 2.4G/5G Dual Frequency Band, Dual Channel Maximum Transmission Rate 2402Mbps
Supports
5.2

I/O Interface

Video / Data / Charging


microSD Slot




Audio Port
BIOS Reset Port

USB4 (40Gbps) × 1
USB 3.2 Gen 2 Type-C (10Gbps) × 1
USB A (10Gbps)× 1
SD 3.0 Protocol
Bus interface: UHS-I
Video Speed Class: V30
I/O Performance: A2, Theoretical Speed: Read 160MB/s, Write 120MB/s
Compatible: microSDHC / microSDXC / microSDUC
1 x 3.5mm Headphone/Microphone Combo Jack, Compatible With Apple Headphones (US version)
Supports

I/O Device

Power Switch
Keyboard
Indicator Lamp
TouchPad
Mouse
Joystick
Programmable Key
Game Accessories Buttons
Game Function Buttons
D-Pad
Handle Vibration
Sensor
Other Keys

Power Button
QWERTY Full Keyboard, Scissor-Switch Keys, Backlit Design
Charging Indicator Light
Precision Touchpad (PTP Mode), Supports Up To 4-Finger Gestures
Joystick For Simulating Mouse, Requires Switching Between "Gamepad/Mouse" Modes
Hall Effect Joystick, Infinite, Ultra-Linear, No Dead Zone, Recessed Design, Supports L3/R3 When Pressed Down
L4 and R4 Are Programmable Macro Keys
L1 And R1, L2 And R2 Are Linear Analog Trigger Buttons
ABXY, △○×□ Dual-Character Silk-Screen, Select Button, Start Button, Menu Button (Xbox)
Integrated Directional Pad
Dual-Linear Motor
6-Axis Design: 3-Axis Accelerometer, 3-Axis Gyroscope
"Gamepad/Mouse" Mode Switch Button

Battery

Battery Type
Battery Capacity
Battery Life

Lithium Polymer Battery
44.24Wh
Heavy Use For 3 Hours, Moderate Use For 6-8 Hours, Light Use For 14 Hours, Depending On The Specific Usage Environment

Appearance

Weight
Size
Shell Material
Shell Color
Thermal Design

520g
168×109×26 mm
Aluminum alloy material and PC material
Black
Active Cooling, Fan + Heat Pipe

Accessories

GPD WIN Mini × 1
Ergonomic Grip (Optional, To Be Purchased Separately)
65W PD Power Adapter（20V==3.25A，15V==3A）× 1
Warranty Card × 1
Product Manual × 1

Warranty Information

Warranty Policy
Warranty Time
Official Hotline
Chinese Website
English Website

Global Warranty
Device 1 year, Charger 1 year
+ 86 755 86572275
www.Softwincn.com
www.Gpd.hk

Data description:

The memory capacity and USB interface transfer rate on this page are all theoretical values, while the dimensions, thickness, weight, screen opening and closing angles, and other data are all theoretical design values. There may be reasonable errors in actual measurements. Unless otherwise specified, all data comes from our company's laboratory. Due to real-time changes such as software upgrades, the pre-installed software version, interface, and name may vary slightly depending on the product batch. Please refer to the actual usage situation.

* Supports C port adapter (65W and above) with 20V output level. When using a C port adapter, the motherboard is powered first when the computer is turned on. After meeting the power supply requirements, the battery will slowly charge and assist in providing power to the motherboard.
* Battery life varies due to different factors, including product model, configuration, loaded applications, functions, usage, wireless capabilities, and power management settings. After a period of use, the maximum capacity of the battery will decrease.
* The main components include the motherboard, screen, memory, hard drive, keyboard, and power adapter.
