AMD Ryzen™ AI 9 HX 370

AMD Radeon 890M
16CUs, 1024 shaders
32GB PDDR5x 7500 MT/s

6-inch Screen

Image Resolution: 44Hz & 60Hz
Native landscape orientation
16：9, 1080P, 368 PPI

ALPS 3D Joysticks

6-Axis Gyroscope Positioning
Dual Vibration Motors
L1/R1 Feature RGB Lighting Effects
L2/R2 Feature Linear Analog Trigger Buttons

White Backlit Keyboard

QWERTY Full Keyboard
Scissor-Switch keys
2 Programmable Back Buttons
Always-On Backlight, Adjustable

1TB / 2TB M.2 SSD

PCIe 4.0 SSD, With Sequential Read And Write Speeds Over 5000MB/s

Windows 11 Home 24H2

Built-In Steam Client And Optimization Tools

PC-Grade Large Turbofan

Thick Dual Heat Pipes For Cooling
Thermal Efficiency Increased by 50%
35% Improvement In Heat Dissipation

Exclusive Optical Finger Mouse

3 finger input devices
4 pointing methods
Seamless gaming and office experience

USB4 Port

65W PD 3.0 Fast Charging

40Gbps Speed, Supports External Graphics Dock For Playing AAA Games

Optional 4G LTE Module

Supports Global Network Coverage

Equipped With Smart Dock

Docking Station + Stand + Charger
Handheld Device Turns Into A Console In Seconds

AAC Dual Linear Speakers

microSD Card Slot

UHS-I Port, A2 Level, 160MB/s Read And Write Speed

Wi-Fi 6

2042 Mbps

The world's smallest AMD APU handheld device
Exclusive performance optimization tool
Support SteamOS

Beyond The Steam Deck

AMD Ryzen™ 7 8840U

AMD Radeon 780M
12CUs, 768 shaders
32GB LPDDR5x 7500 MT/s

Exclusive Oculink Port

Direct PCIe Gen4 x 4 Connection
63Gbps Effective Bandwidth
Supports GPD G1 Mobile Docking Station

Low-Noise Intelligent Amplifier

The World's Smallest AMD Handheld Device, Supports Windows 10/11 And SteamOS

So far, the WIN 4 is the smallest AMD APU handheld in the world, but its processor is powerful, far surpassing the custom APU of the Steam Deck. The WIN 4 inherits the sliding design and physical buttons of the WIN 3, and it supports Windows 10/11 and SteamOS (with system adaptation provided by Valve).

220mm

298mm

92mm

117mm

GPD WIN 4

Steam Deck

GPD WIN 4 (2025)

Heat Dissipation, Power Consumption

Never Compromise

AMD Ryzen™ AI 9 HX 370 / AMD Ryzen™ 7 8840U
32GB  LPDDR5x 7500 MT/s
1TB / 2TB，PCIe 4.0 M.2 2280 SSD

Ports And Function Keys

Exclusive Oculink port with direct PCIe connection, 63Gbps effective bandwidth, and support for GPD G1 graphics dock. Full-speed USB4 port with 40Gbps effective bandwidth, support for GPD G1 graphics dock and PD fast charging. Full-featured USB Type-C port with 10Gbps speed, support for intelligent docking station and PD fast charging. USB Type-A port with 10Gbps speed. A2 level microSD card reader with 160MB/s read and write speed.

Oculink (SFF-8612)

Air Outlet

Earphone / Microphone Port

R1 / R2

Left Rocker

D-Pad Key

Fingerprint Unlock

Lanyard Hole

Left Speaker

Select Key

6” Screen

USB Type-C

Microphone Port

Start Key

Xbox Key

USB Type-C (USB4)

4G LTE Module Fixed Card Slot

Volume +/-

Power Key

L1 / L2

Custom Key

MicroSD Card Slot

Handle / Mouse Toggle Key

BIOS Reset Key

Air Inlet

ABXY Key

Running Indicator

Charge Indicator

Right Rocker

OFN (Optical Finger Navigation)

Right Speaker

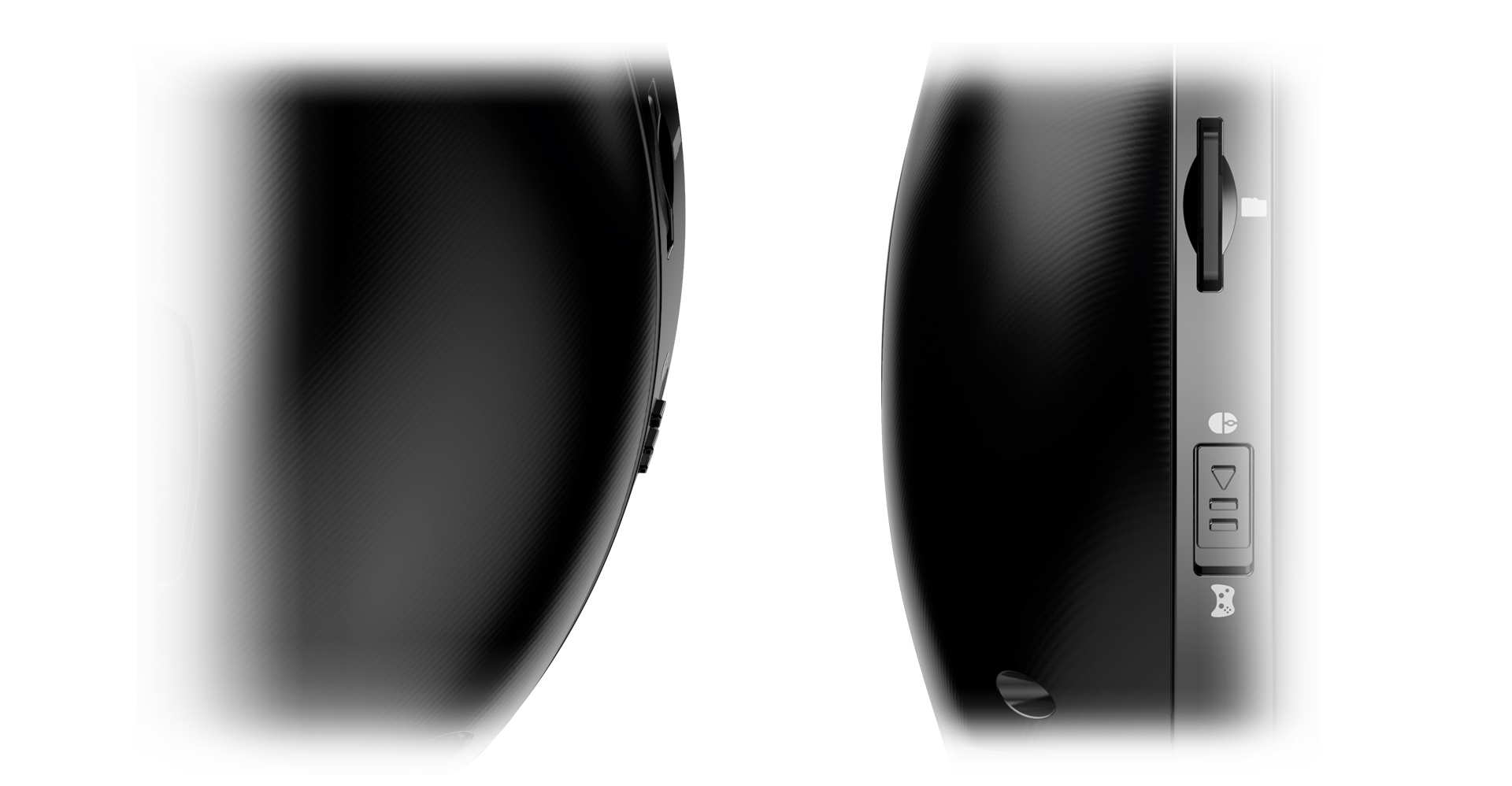

The Design Features Rounded Edges On Both Ends And Anti-Slip Patterns For Added Grip

The design of the device’s ends draws inspiration from the rounded curves of the PSP, distributing pressure more evenly when held and conforming to ergonomic principles, resulting in a fully padded feel for greater comfort. The grip area features a protruding design with unique anti-slip textures, increasing the friction surface to prevent slipping. The body is still made from LG-DOW 121H aerospace-grade ABS synthetic resin, with a Rockwell hardness of 109R and a bending strength of 26,000 kg/cm². The matte spray finish gives it a deep black color, is glare-free, and has a rich texture.

6-inch Eye-care Screen With Native Landscape Mode And Slide Cover Design. 1080P Resolution, 368 PPI, And DC Dimming With No Flicker

WIN 4 (2025) features a 6-inch eye-care screen with native landscape mode and a 1920x1080 resolution, 16:9 golden ratio, and 368 PPI. It supports two refresh rates - 60Hz and 40Hz. The screen is protected by the 5th generation Corning Gorilla Glass and has DC dimming with no flicker. It inherits the slide cover design from WIN 3, but with a larger screen, narrower bezels, and a wider field of view.

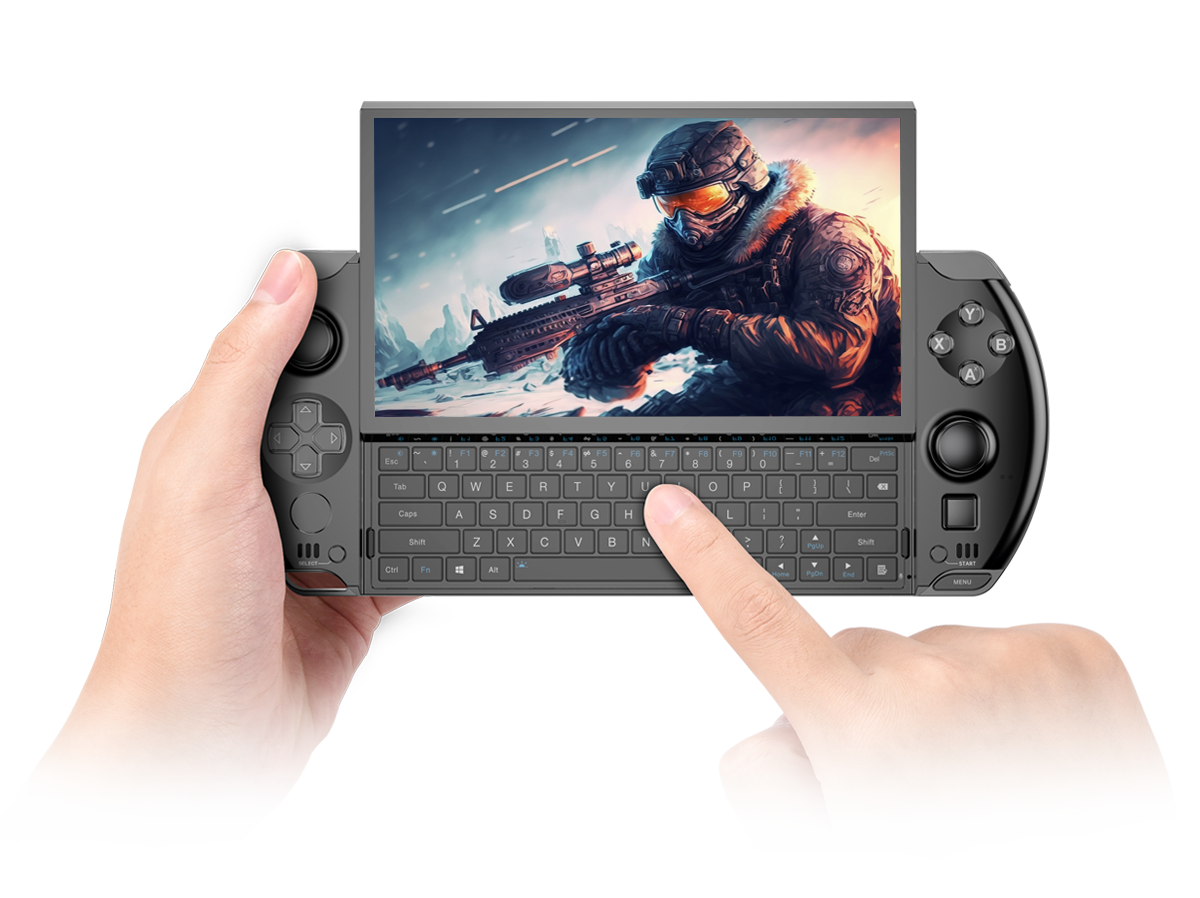

The WIN 4 Features A Hidden White-Backlit Physical Keyboard, With The Ability To Control The Backlight Via Keyboard Commands To Turn It On Or Off

WIN 4 returns to the traditional physical keyboard layout with a "QWERTY" full keyboard layout, utilizing metal dome technology for its keys. When the screen is slid open, the white backlight remains continuously lit and can be controlled via the keyboard to turn on or off.

WIN 4 Has A PC-Grade Turbo Fan And Thicker Dual Heat Pipes, Resulting In A 35% Increase In Cooling Efficiency Compared To WIN 3

Despite its small size, the WIN 4 never compromises on power consumption, with significant improvements in internal cooling. The cooling module features a larger turbo fan than the WIN 3, resulting in a 34% increase in airflow, a 22% increase in heat sink cross-section, and a 50% increase in dual heat pipe thickness, resulting in a 50% increase in thermal conductivity. Overall, the WIN 4's cooling efficiency has improved by 35% compared to the WIN 3.

In BIOS, the fan PWM control mode saves energy by only operating at 20% of its speed when the internal temperature is below 40°C. When the temperature exceeds 40°C, the fan accelerates with a 2% PWM increase each time, up to a maximum of 100%, combined with a high-speed air duct at the top to quickly expel heat from the machine. When tested, the WIN 4 is silent with an 18W TDP and quieter than the WIN 3 with a 28W TDP.

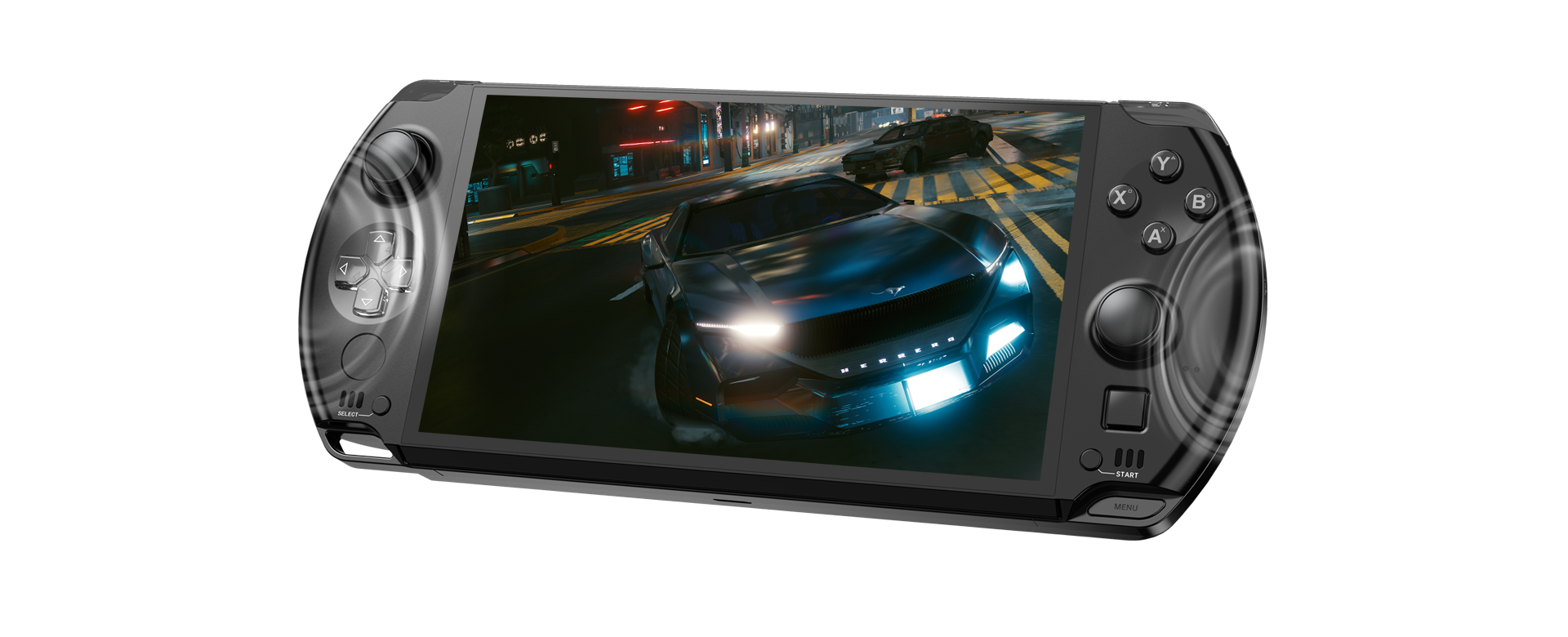

WIN 4 Has AAC Ultra-Linear Dual Speakers With Double Amplitude Enhancement For Exceptionally Loud Sound

In terms of audio, the WIN 4 inherits its predecessor's excellent design, utilizing a high PSRR intelligent amplifier for improved efficiency and lower noise. It also retains the top-of-the-line German AAC stereo ultra-linear speakers, with a sound chamber that employs Bass materials, equivalent to a large 0.9cc sound chamber design. The dual-coil driven diaphragm ensures balanced force distribution, while double amplitude enhancement produces exceptionally loud sound.

              Audio Technology

Through the Screen

Yet as if You were in Live

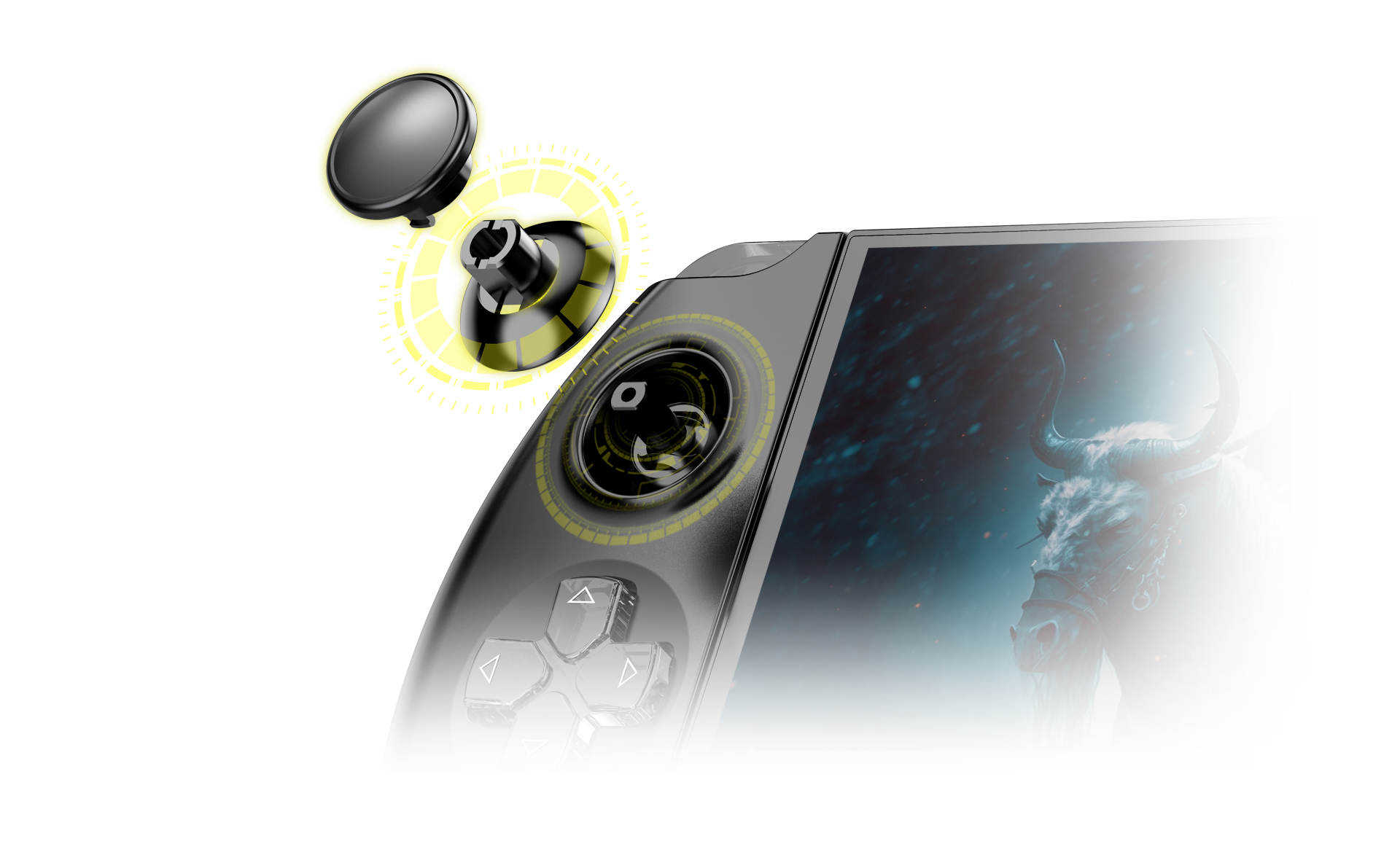

WIN 4 Features Dual 3D Joysticks Manufactured By ALPS, Which Are Comparable In Quality To Top-Tier Japanese Shimizu And Sanwa Joysticks

WIN 4 returns to the traditional staggered layout for its joysticks, highlighting the externally mounted dual 3D joysticks manufactured by ALPS. These joysticks have a large range of motion and low resistance, sacrificing some response speed for improved precision. When playing fighting games, the joystick's comfort level is comparable to top-tier Japanese Shimizu and Sanwa joysticks, with native support for L3/R3 functions via joystick pushes.

The WIN 4 Has Dual Built-In Vibration Motors, With Adjustable Levels Of Strong, Weak, Or No Vibration

The WIN 4 has been upgraded to include dual vibration motors with adjustable levels of strong and weak vibration, enhancing the overall vibration experience. When playing shooting games, you can feel the recoil of your gun and the vibration of the entire device when starting the engine. The precise and intense vibration effects of WIN 4 provide an immersive gaming experience. If you prefer not to have vibration, you can also turn it off.

The Addition Of Optical Finger Navigation Mouse Makes Gaming And Office Tasks Even More Effortless And Convenient

To avoid frequent switching between the gamepad/mouse, the WIN 4 now features a Pocket 2-style Optical Finger Navigation mouse located in the lower right corner of the device, with support for click confirmation. This means that users can easily control the desktop even while in gamepad mode, making gaming and office tasks even more effortless and convenient.
To summarize:
1. The WIN 4 integrates three different input devices: "joystick-simulated mouse," "Optical Finger Navigation mouse," and "touch screen."
2. The WIN 4 supports four different input methods: "keyboard," "joystick-simulated mouse," "Optical Finger Navigation mouse," and "touch screen.

The Fingerprint Unlock Feature Is Retained, Avoiding The Hassle Of Entering Passwords Every Time

It can be frustrating to constantly enter your password every time the screen locks due to a temporary absence. With the WIN 4, the fingerprint unlock function is conveniently located in the lower left corner, allowing for one-touch system unlocking with a single finger.

Tech Specs

Screen: 6 inches, 1920 × 1080
CPU: AMD Ryzen™ AI 9 HX 370 / AMD Ryzen™ 7 8840U
GPU: AMD Ryzen™ 890M / AMD Ryzen™ 780M
DDR: 32GB LPDDR5x 7500 MT/s
Storage: 1TB / 2TB PCIe Gen4 M.2 NVMe SSD
Wireless Network: Wi-Fi 6E, 4G LTE (Optional)
Bluetooth: 5.3
USB4: ×1, 40Gbps
USB Type-C: ×1, 3.2 Gen2 10Gbps
Oculink (SFF-8612): ×1, 63Gbps
microSD Slot: ×1, UHS-Ⅰ A2, U3, V30
Battery: 45.62Wh

Docking Station + Stand + Charger

Intelligent Docking Station Turns Handheld Device Into Console In Seconds

The WIN 4 (2025) is equipped with an intelligent docking station that not only supports charging but also provides a plethora of ports on the back, including a docking station for expansion, allowing for easy charging, internet connectivity, external display, and more, all in one place.

Ports Listing:
3 × USB 3.2 Gen2 Type A, with speeds up to 10Gbps
1 × USB 3.2 Gen2 Type C, Charging only
1 × HDMI 2.0, port supporting a 3840×2160 resolution and a refresh rate of 60Hz
1 × 10/100/1000Mbps, Adaptive RJ45 port

The Exclusive TDP Tuning Tool Provides Various Optimization Options To Enhance Gaming Experience And Achieve Optimal Performance

“MotionAssistant” is a tool specifically developed for the GPD handheld gaming device series, offering a variety of optimization tools such as TDP tuning in 1W increments, GPU lock frequency, predefined power consumption settings, shortcut keys for foreground switching, overlay on the gameplay screen, custom mapping of back buttons to shortcut keys, and the ability to change settings without calling up the motion assistant port. It provides a more refined experience than SteamOS. Additionally, the 'Power Control Panel' tool developed by overseas users allows for more intuitive adjustment of various parameters.

Supports The "Playnite" Open-Source Frontend And Offers 23 Classic Theme Desktops For Free Switching

Playnite is an open-source game frontend that supports emulator games, and is fully compatible with the WIN 4. It offers multiple language ports and integrates 23 classic desktop themes for free switching.

14 Mainstream Game Platform Data Sources, Integrated With 28 Game Libraries

Resources from game platforms such as Steam, Epic, and Uplay can be imported and managed through Playnite, which supports 14 mainstream game platform data sources and integrates with 28 game libraries, including support for emulator game libraries.

Exclusive 4G LTE Clip-On Module That Supports Global Network Coverage, Allowing You To Play Games Anytime And Anywhere (Optional)

To enable gaming on-the-go, WIN 4 comes with an exclusive 4G LTE clip-on module that supports global network coverage. This module supports 4G TD-LTE, FDD-LTE, and 3G CDMA networks and accommodates a Nano-SIM card. It is an optional module and not included as standard equipment. There is no need to disassemble the device as it can be easily clipped onto the back of the device when needed.

WIN 4 Features Two Customizable Physical Back Buttons That Can Be Mapped And Programmed According To Your Preferences

During gaming, the top cover of the device is typically not slid open. However, there are times when you need to press the Esc key to return to the game settings port, and sliding open the cover each time can be inconvenient. To address this, we have added two customizable physical buttons on the back of the WIN 4 to easily customize combination keys and interval times.

The WIN 4 Is Equipped With A 6-Axis Gyroscope For Motion Sensing, Allowing For Free Play Of Motion-Controlled Games

The WIN 4 features built-in 6-axis gyroscope positioning, which can convert motion-controlled actions into various joystick button inputs. Human movements can determine the direction of the racing car, providing a deep experience of motion control. This translates into a wider range of gameplay options. The exclusive optimization tool, 'MotionAssistant', not only emulates the Xbox 360 joystick but also simulates native motion-controlled games on the PS4.

The L2 / R2 Trigger Buttons Are Linear Analog Triggers, Allowing For Gradual Acceleration When Playing Racing Games And Quick, Full Acceleration For Instant Kills When Playing Shooting Games

The most popular games among players are nothing but 'cars, guns, and balls.' Continuing the legacy of the WIN 3, WIN 4 features linear analog triggers with a 27-degree tilt angle, capable of producing 256 (0~255) state changes by converting the acquired acceleration value into digital commands. If you are a skilled driver, experiencing racing games on WIN 4 will result in a significant improvement in smoothness, with gradual acceleration and instant kills in shooting games, just like the real throttle and trigger of a firearm!

WIN 4 Has Dual Type-C Ports That Allow For Charging While An External Display Is Connected

Users criticized the single Type-C port on the WIN 3. The WIN 4 addresses this issue with a dual Type-C port design, featuring one USB4 and one full-featured Type-C port that support charging, video signal output, and data transmission.

Multiple Scenario Experiences To Meet Your Needs

With the ability to seamlessly play games and work on-the-go, the WIN 4 (2025) is a high-performance device that functions as both a console and a productivity tool, all while being portable and readily accessible. It can easily rival mainstream PCs in terms of performance.

PCIe 4.0 M.2 2280 SSD, Available in 1TB / 2TB Options, with Read/Write Speeds Exceeding 5000MB/s and Unlimited Expandability

It supports the PCIe Gen4×4 specification, with a theoretical maximum throughput of up to 7.877GB/s. The official configuration includes a 1TB or 2TB 2280 SSD (PCIe 4.0×4), with actual sequential read and write speeds exceeding 5000MB/s, allowing for unlimited expansion.

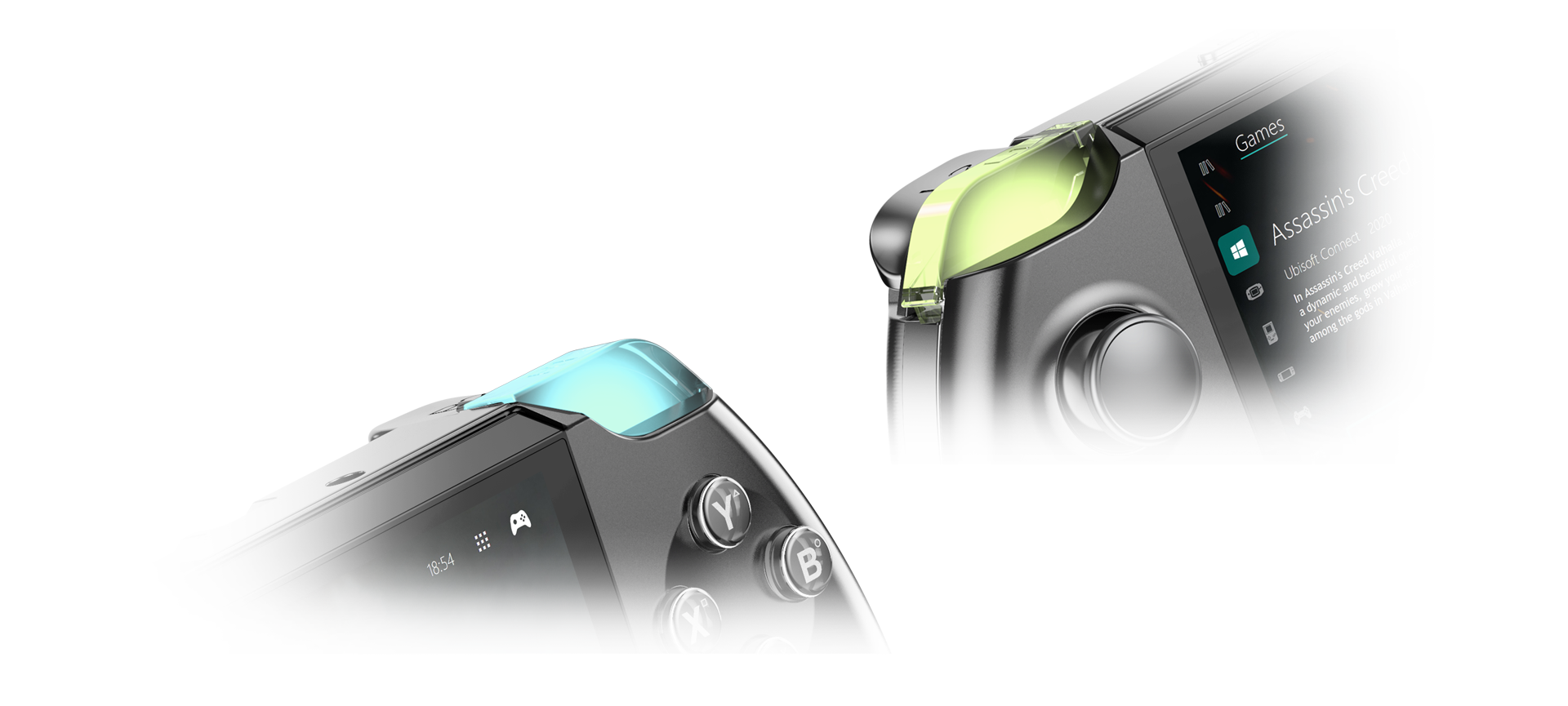

The L1 / R1 Trigger Buttons Feature RGB Lighting Effects With Customizable Colors And Multiple Lighting Modes To Choose From

The L1/R1 trigger buttons of the WIN 4 come equipped with LED ambient lighting, featuring seven-color LED backlight effects with customizable colors and multiple lighting modes to choose from. You can also adjust or turn off the lighting effects at any time using the built-in WinControls tool within the system.

The Exclusive Oculink (SFF-8612) Female Port Supports The GPD G1 Graphics Dock, Which Delivers Performance Surpassing That Of The RTX 3070

The WIN 4 integrates an Oculink (SFF-8612) female port, providing PCIe direct connection with effective bandwidth of 63Gbps. It perfectly supports the GPD G1 mobile graphics dock, improving gaming experience and work efficiency.

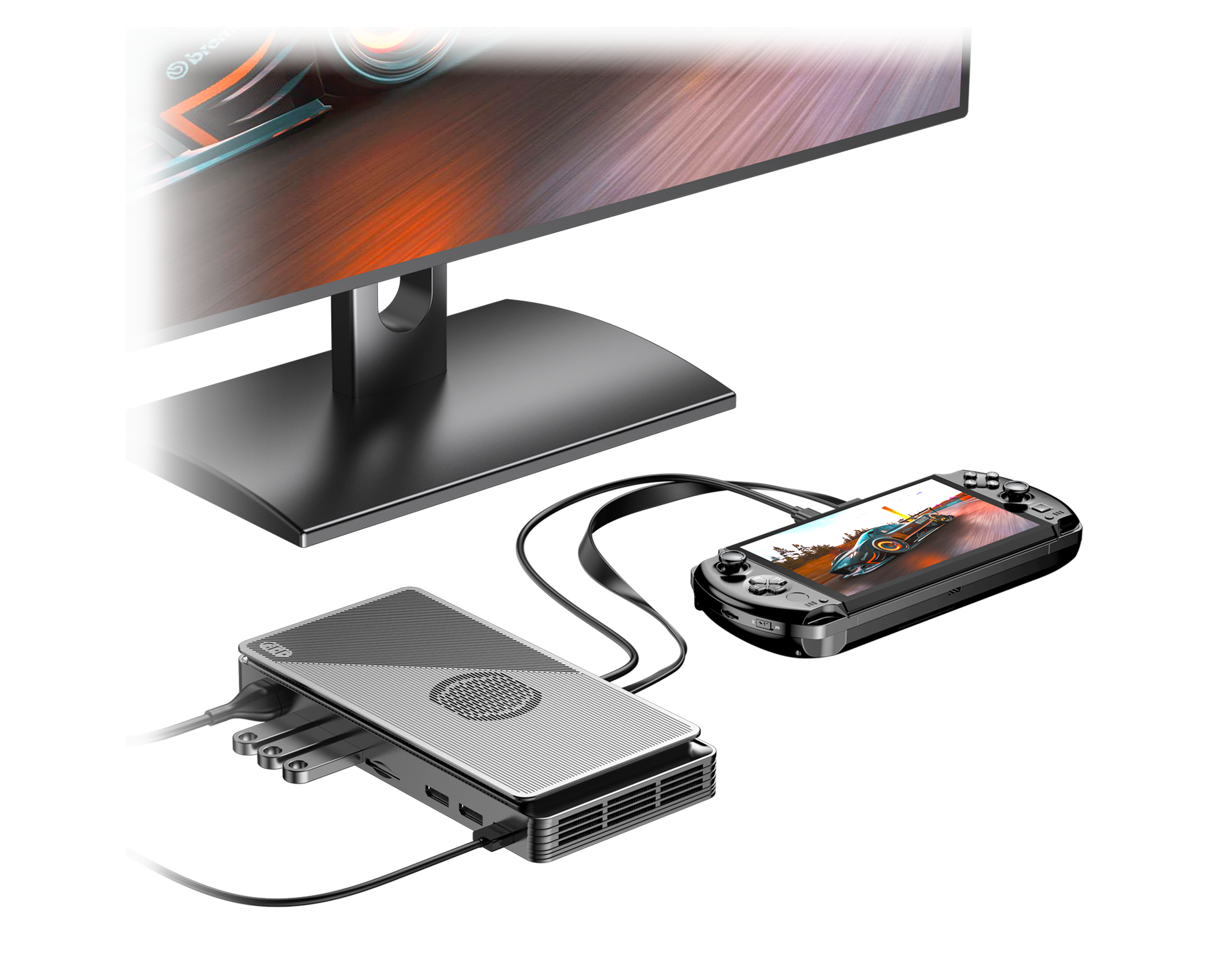

The GPD G1 Is The World's Smallest Mobile Graphics Expansion Dock, Allowing GPD Handheld Devices To Have Dedicated Graphics Capabilities

RX 7600M XT

RDNA 3 Architecture

8GB GDDR6

Video Memory Capacity

32MB

Infinity Cache

Oculink (SFF-8612)

63Gbps Effective Bandwidth

SD 4.0 Card Reader

312MB/s Read & Write

60~100W

TGP

HDMI × 1, DP × 2

Supports 3 Displays

USB 3.2 × 3

5Gbps

AMD Ryzen™ AI 9 HX 370

Breaking Limits, Offering Exceptional Performance

The AVX-512 Instruction set Outperforms the 125W Intel® Core™ i9-11900K Processor

The AVX-512 instruction set is designed for accelerating AI and HPC applications, as well as CPU-dependent simulation games, achieving a 1.3x improvement in FP32 floating-point inference multithreaded performance and a 2.5x improvement in INT8 integer inference multithreaded performance.

God of War III on PS3 can be Played at 60 Frames Per Second, Enabling Full-speed PS3 Emulation

To run emulators smoothly, a higher-performance CPU is needed. With the support of the AVX-512 instruction set, combined with the new RDNA 3.5 architecture iGPU, emulators such as RPCS3, Yuzu, Gitra, Vita3K, and Xenia can achieve up to a 50% performance boost.

Time Spy Score Comparison, 890M iGPU Outperforms NVIDIA GeForce RTX 2050 (Mobile)

AMD Radeon 890M iGPU, based on the all-new RDNA 3.5 architecture, integrates 16 CUs with 1024 sp, delivering a 33% improvement in specifications compared to the previous generation, resulting in a 36% increase in gaming performance! Combined with LPDDR5x 7500 MT/s memory, the graphics memory bandwidth has also been enhanced.

Brand-new XDNA 2 Architecture NPU, 50 TOPS Strongest AI Accelerator

The brand-new AMD XDNA 2 architecture NPU is 3 times more powerful than the previous generation NPU, reaching 50 TOPS. Combined with the CPU and GPU, the total computing power is as high as 80 TOPS, far exceeding the 40 TOPS computing power standard of AI PCs. It improves computing efficiency and reduces overall power consumption, making local AI computing tasks such as AI matting faster and more efficient.

With 32GB of LPDDR5x 7500MT/s Memory, There is no Need to Worry About Memory Overflow During Gaming

The GPD WIN Max 2 (2025) utilizes LPDDR5x 7500MT/s memory, available in three capacities: 32GB. Up to 16GB of this memory can be allocated to VRAM, allowing AI applications that require large VRAM to fully perform. While gaming, there's no need to worry about memory overflow, ensuring smooth gameplay.

RDNA 3.5 iGPU, Doubling Gaming Performance Enjoy 1080P / 120 FPS on AAA Titles

RDNA 3.5 architecture iGPU AMD Radeon 890M offers approximately 50% performance improvement per watt. Compared to FSR 3.0, FSR 3.5 provides nearly double the gaming performance, particularly excelling in AAA titles with low settings at 1080P, achieving 120 FPS.

Test benchmark: AMD Ryzen™ AI 9 HX 37 / 32GB LPDDR5x-7500 MT/s / 2TB M.2 NVMe SSD / 1920×1200 / Windows 11 Home 64bit. Unless specified otherwise, FSR is disabled by default during testing!
